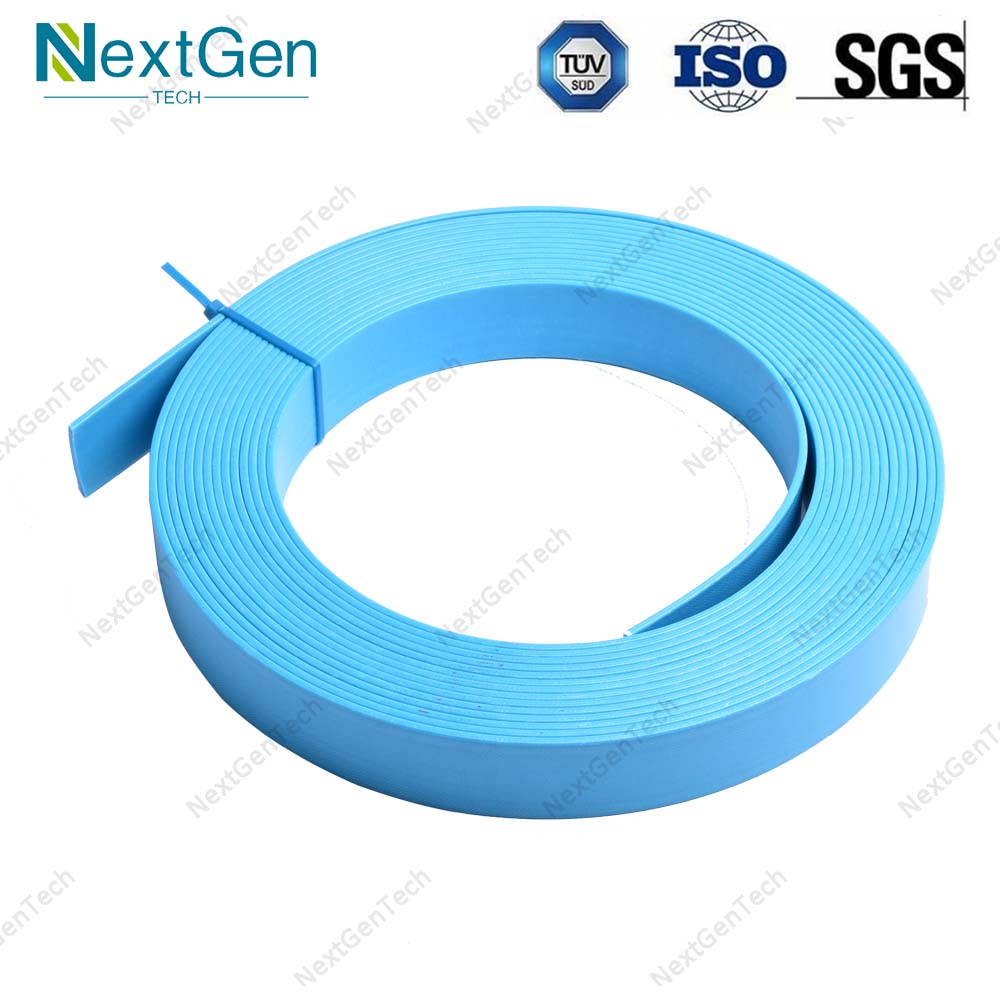

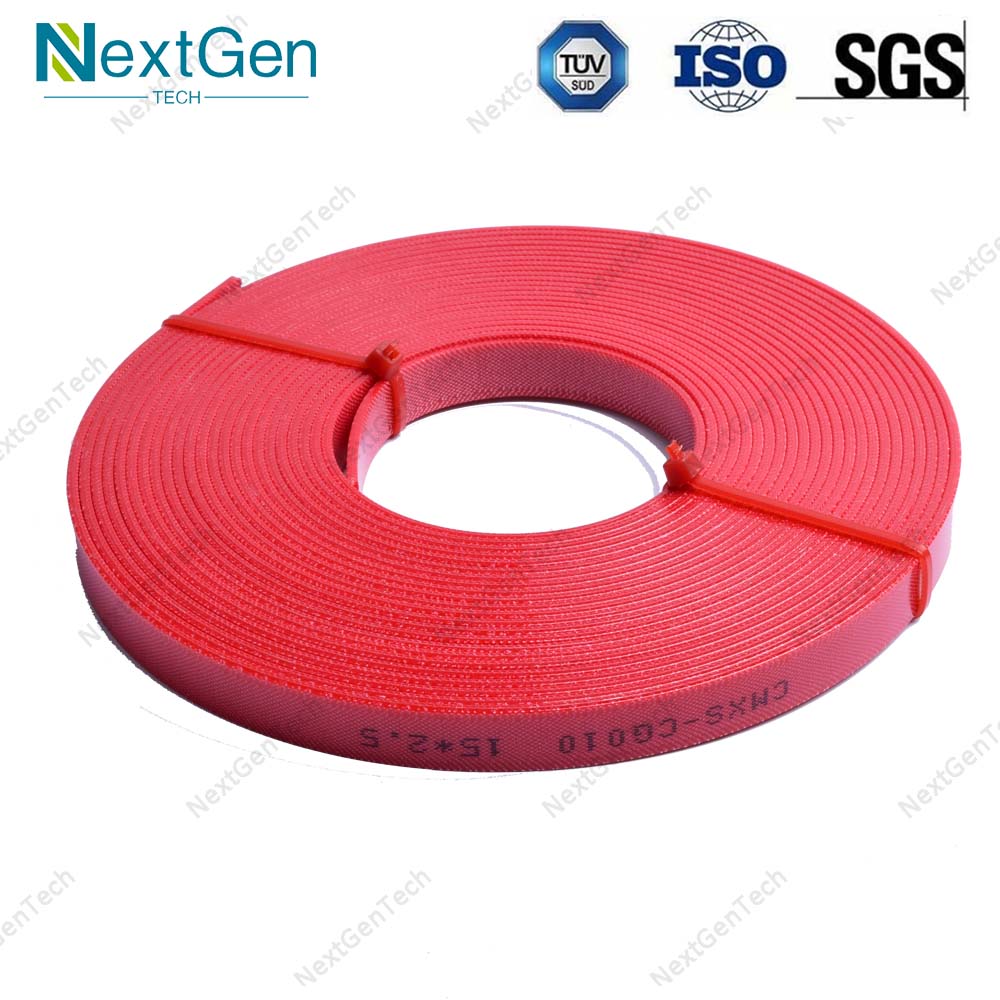

  • Phenolic resin guide tape

  • Phenolic resin guide tape

    Material:

    Phenolic resin/Phenolic Resin with Fabric Reinforcement

    Color : Red/Blue

    Length (1 roll): 10 m


    • 0.00
      0.00
Product Description

Material:

Phenolic resin/Phenolic Resin with Fabric Reinforcement

Color : Red/Blue

Length (1 roll): 10 m


Description
Phenolic resin guide tape is to guide the piston and piston rod of a hydraulic cylinder, as well as to withstand arising side loads. At the same time, it prevents any metal-to-metal contact, which will damage and score the surfaces and eventually cause seal damage, leakage and component damage. It is used extensively in mining applications.

Application Range:
Pressure [Mpa] : 350
Temperature[ºC]: -40...+120
Sliding speed[m/s]: <1

Specific gravity (g/cm3): 1.21

Cofficient of slide friction: 0.186-0.225

Coefficient of thermal expansion (10 -5 per °C): 8.353 (For reference only)
Medium: mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water, air and others.

Type of cut

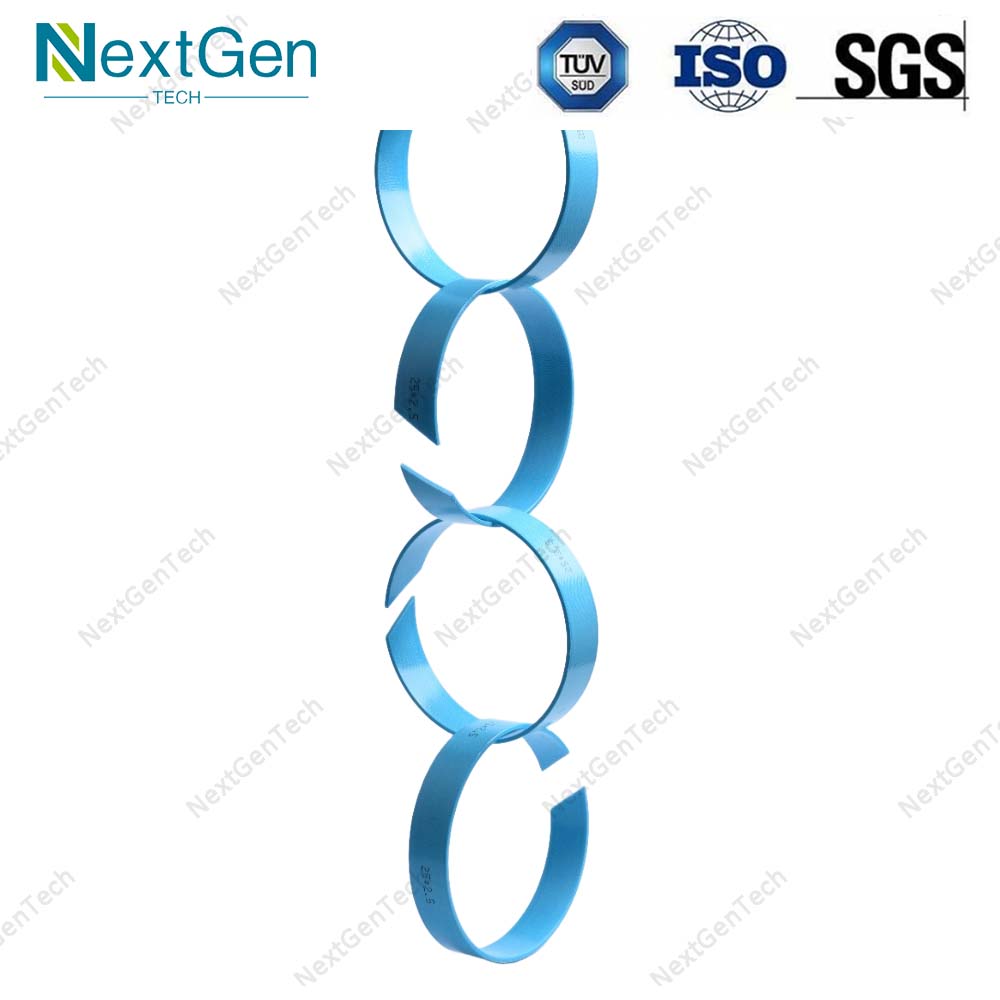

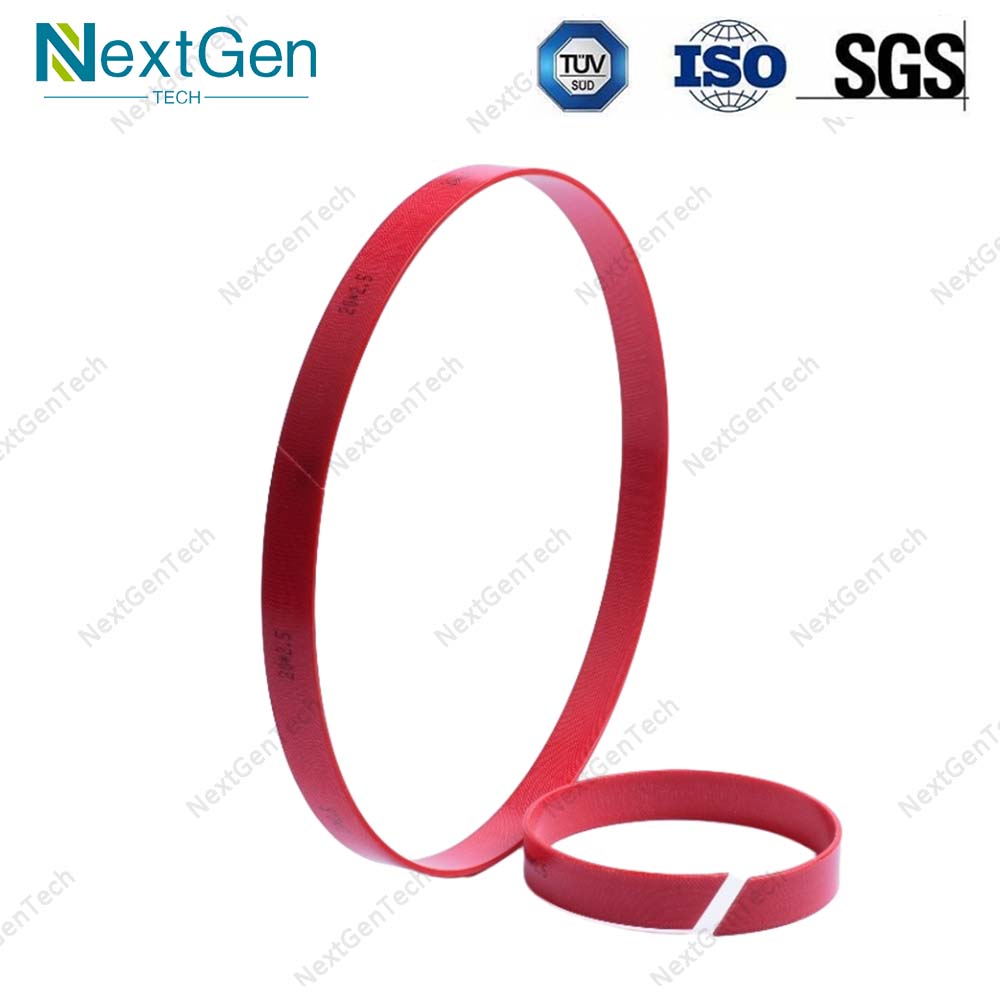

The Angle Cut is the most frequently used standard type of cut. Rings with other types of cut, like Straight Cut is available on request.

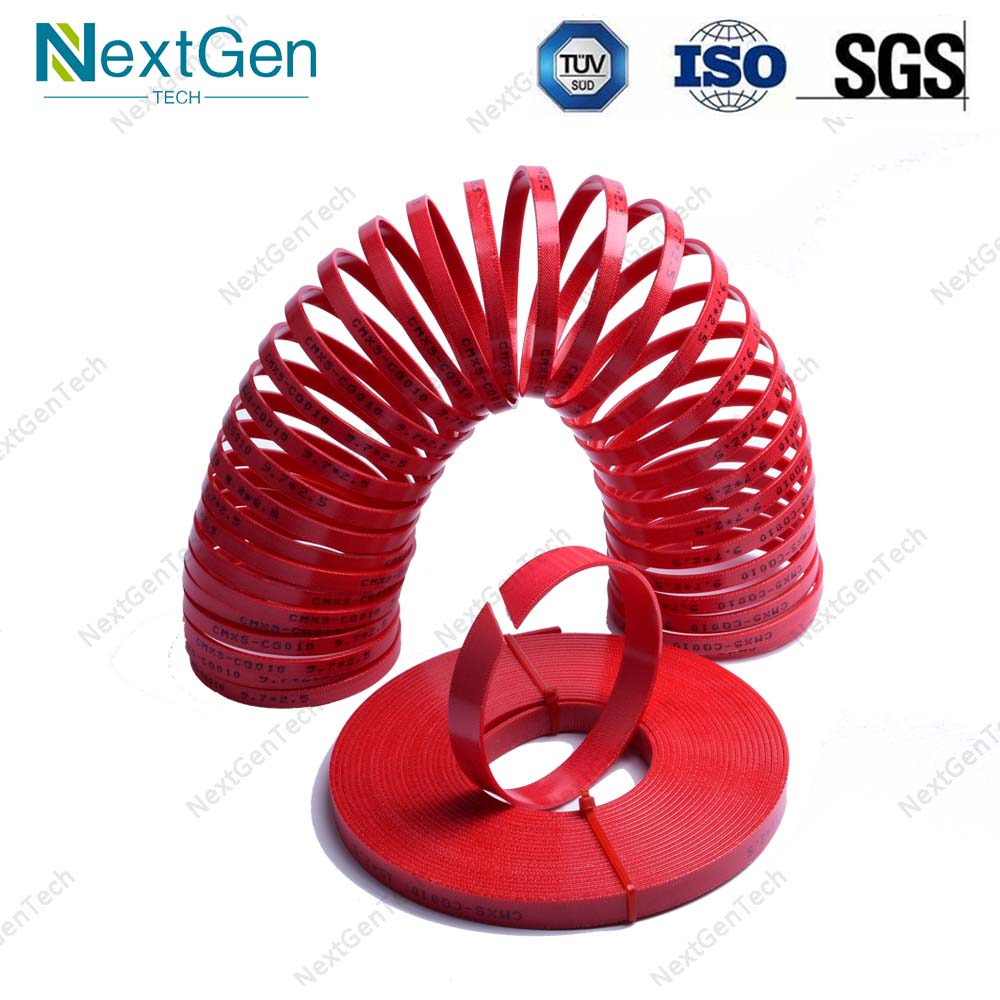

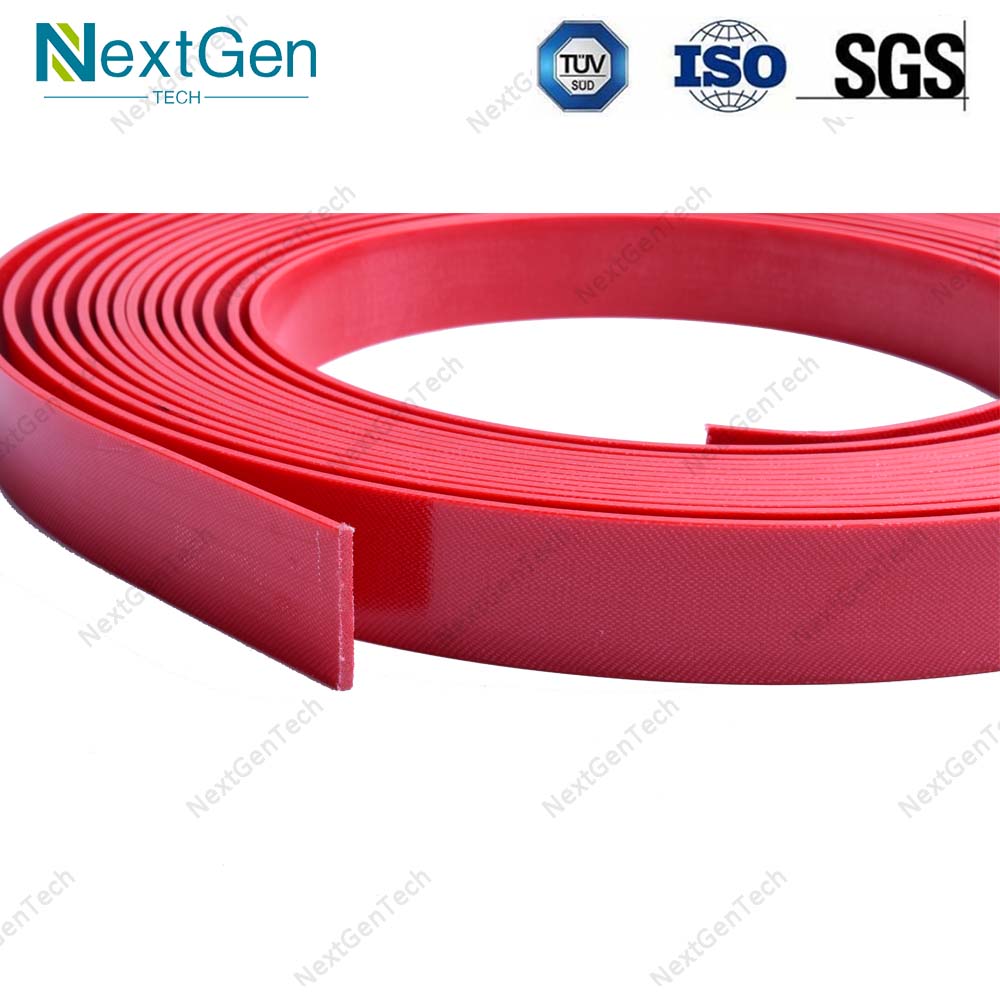

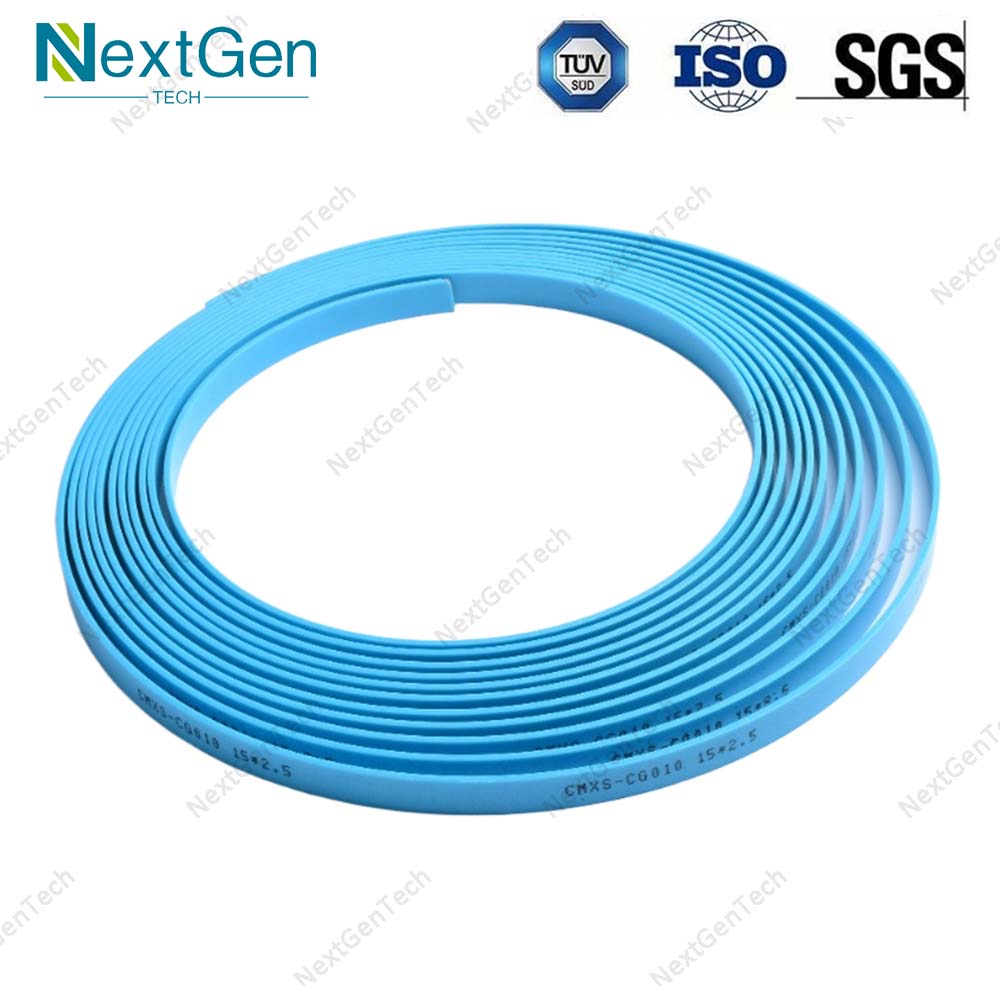

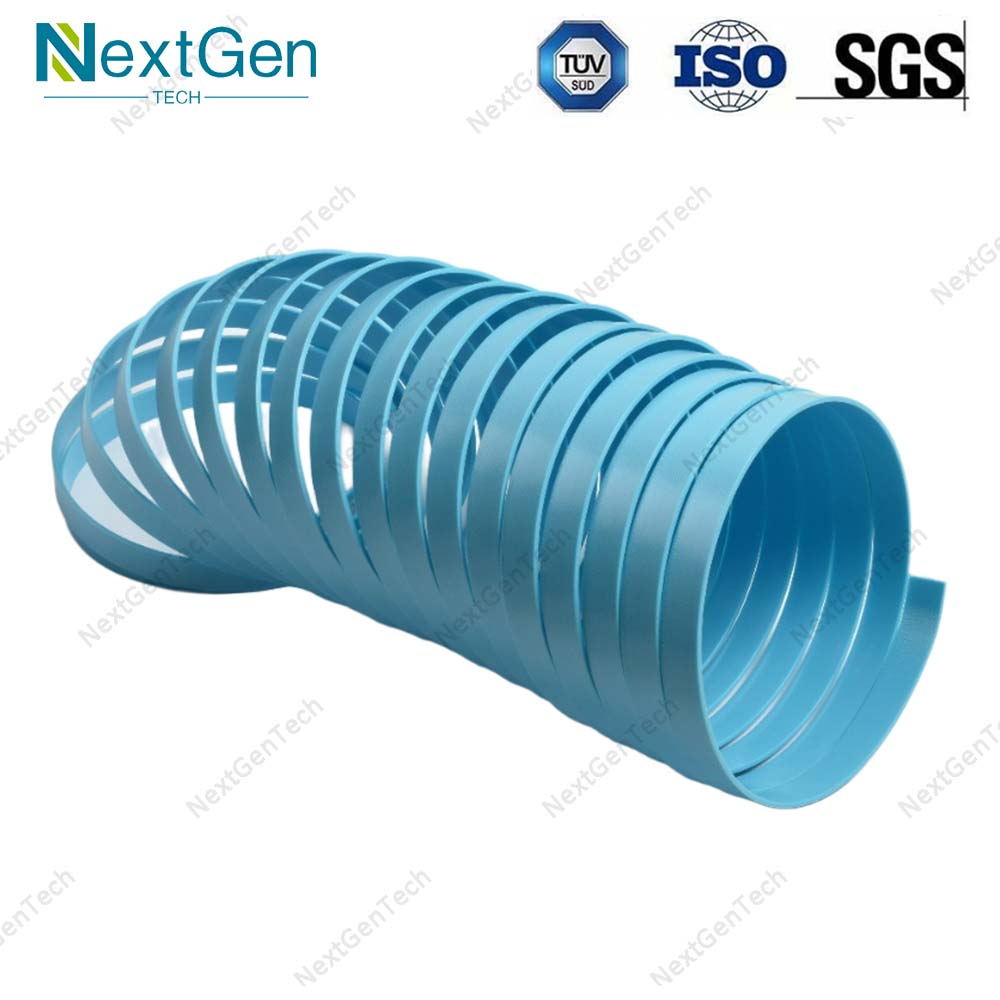

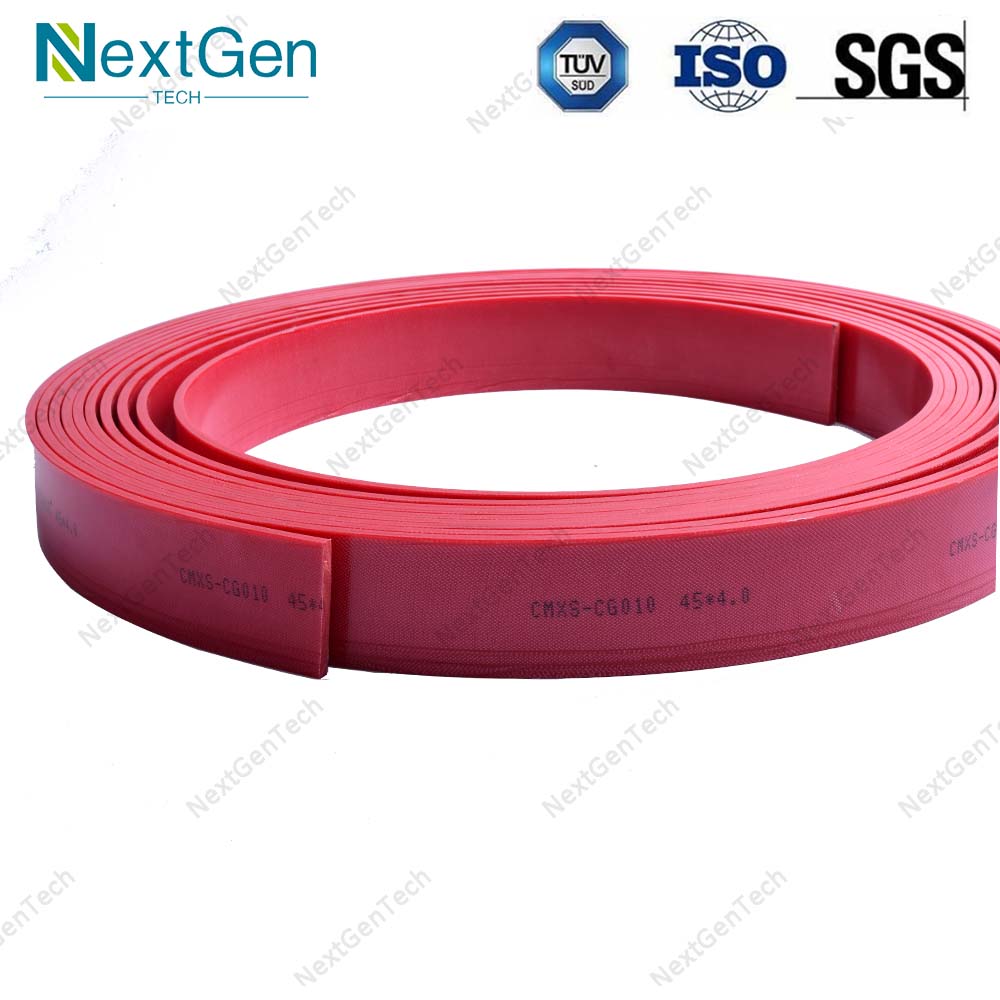

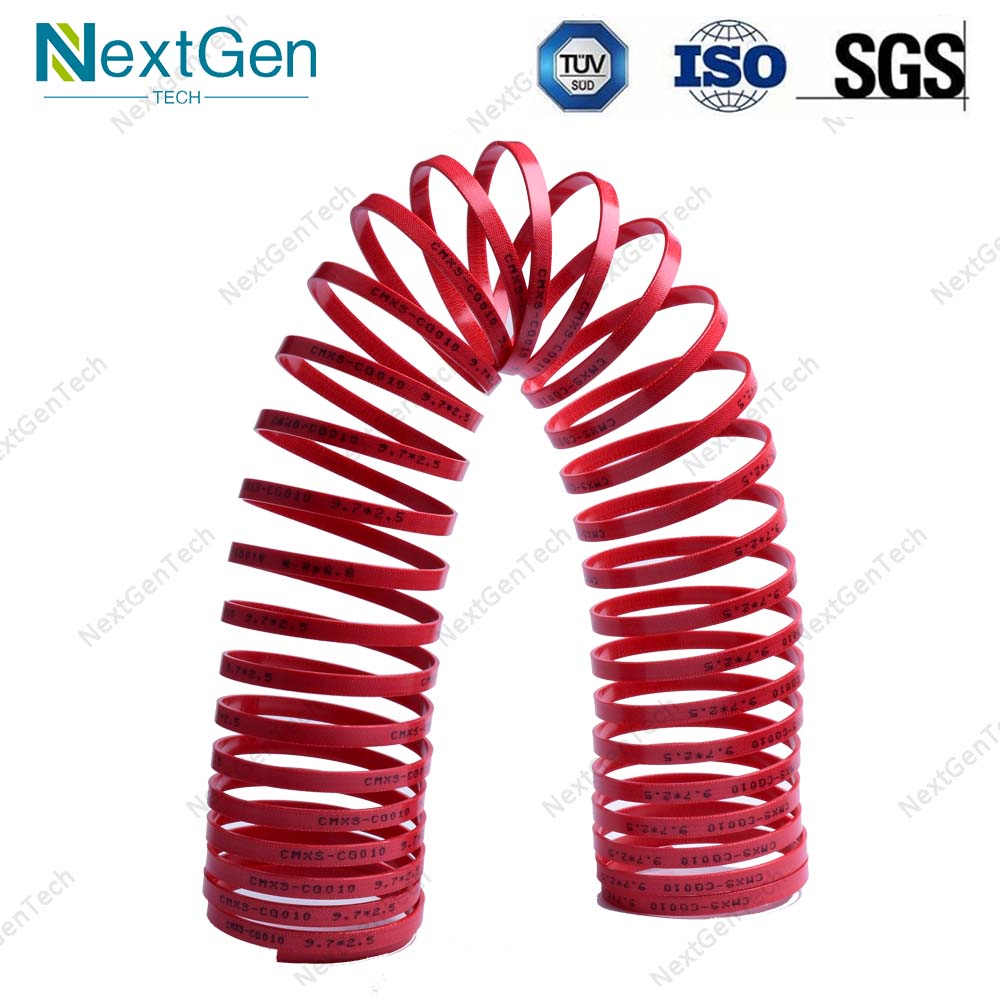

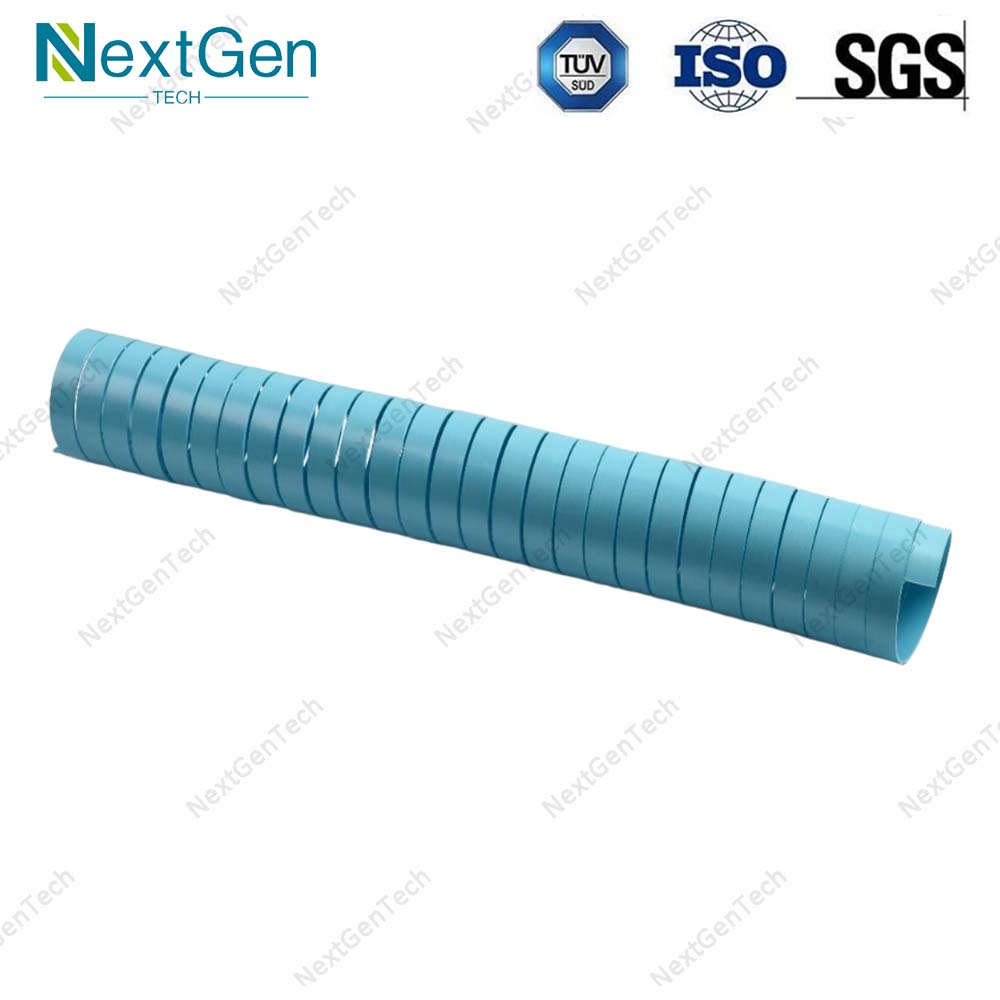

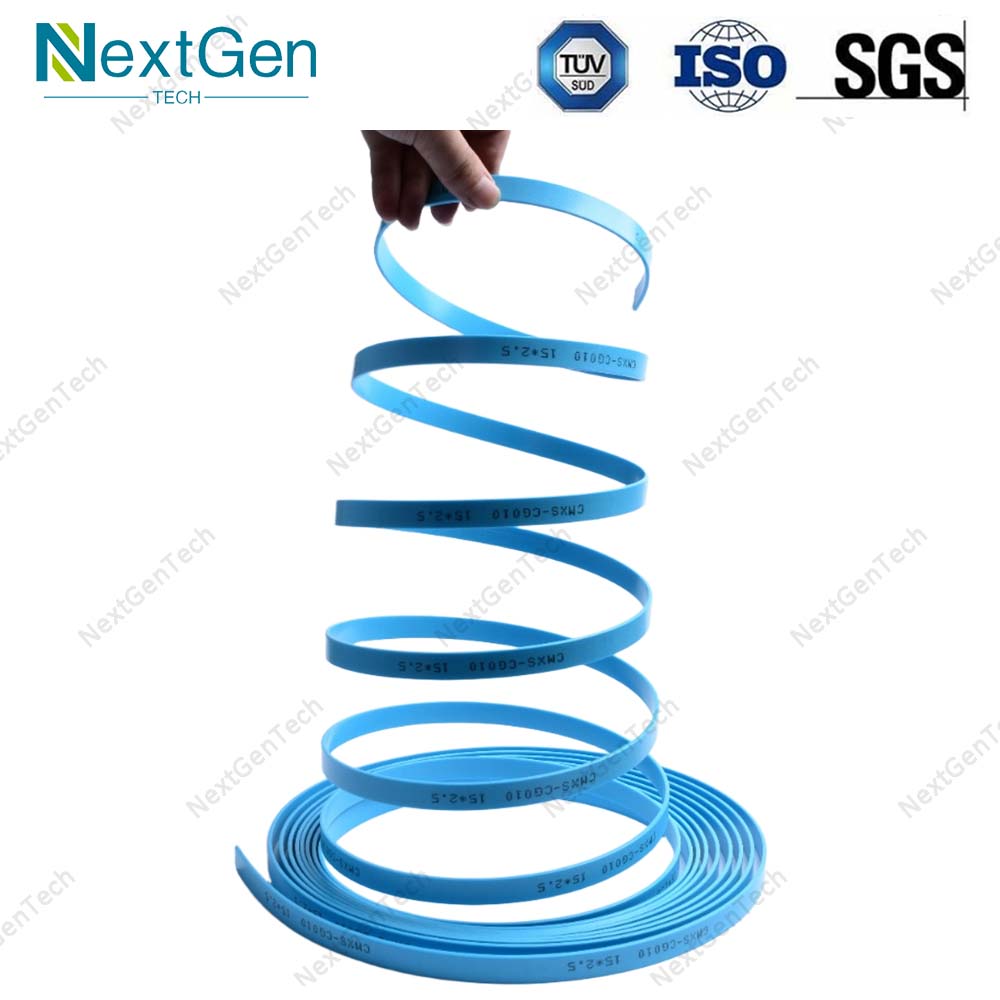

Design type:cut rings, spiral lengths and flat coils

Application: Mining/Mobile hydraulics Off Highway Forestry
